Incubator ICN 52, ICN 118
Natural convection incubator Maximum temperature +80°C
Microprocessor PID controller Fuzzy-Logic LCD display Keypad Timer up to
0-999h59m Real-Time Clock Programming: 50 Programs with 15 steps
(Temperature, Gradient, Time, Fan Speed)
RS 232 Interface 2 shelves

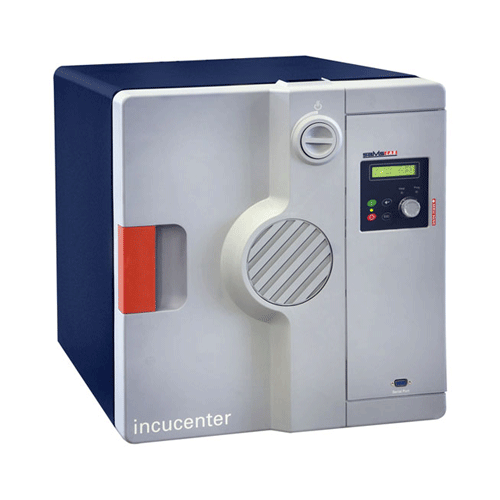

SalvisLab Incucenter ICN 52, ICN 118
Biosphere by design
SalvisLab Incucenter ICN are our precise natural convection Incubator
series. The ICN is especially designed for the long-term and
continuously stable incubation in basic research / research institutes,
food and beverage industry as well as microbiology laboratories. The
exclusive EasyMenu controller from SalvisLab provides an uniform
constant level of temperature conditions at any and all locations within
the chamber. Ideal for gentle incubation of organism as well as
conditioning of heat-sensitive media for microbiological heating. The
inner glass door made of safety glass permits optical process
supervision without heat energy loss. For support of decontamination the
units can be heat up to + 80°C.
Swiss quality and design
SalvisLab Incucenter are setting standards in quality and design. The
units are manufactured in typical Swiss quality according to ISO 9001
norms and convince of accuracy, dependability and design.
High payload
Each Incubator comes with two wire shelves as standard equipment.
They are designed for high payload and their grid design allow unimpeded
air convection. The unique SalvisLab door system makes the ICN
incubator to one of the most compact units in their volume class.
Programmable independence
50 programs at 15 program steps each (set temperature, gradient, hold
time, fan speed) may be stored in SalvisLab Incucenters with a program
duration up to 999 hours 59 minutes. The built-in realtime clock
simplifies programming. In case of power failure, the Incucenter will
restart automatically.
Full control with the SalvisLab EasyMenu
SalvisLab developed the EasyMenu which leads you through operation
and programming of the Incucenters in plain steps. The illuminated LCD
display of the PID controller features fuzzy logic capabilities and
keeps you informed with all required data during the full process cycle.
Serial interface RS 232. SalvisLab Software (STS) is optional available
for programming and data logging according to 21 CFR part 11
(GLP/GMP/FDA conform)
Safety through cleanliness
SalvisLab Incucenters are a well-rounded affair. All transitional
points between walls, ceiling and chamber bottom are deep-drawn, thus
promoting easy cleaning. Unwanted germs and dirt do not find any place
to hide.
Precise temperature characteristics
The PT100 temperature probe guarantees accurate temperature
characteristics exactly as required by the programmed defaults. The
units are equipped with a pass-through (dia. 6 mm) for the installation
of additional temperature probes or electric cables.
