Vacuum drying oven VC 20, VC 50
Precision vacuum drying oven
Maximum temperature +200°C
Microprocessor PID controller Fuzzy-Logic LCD display Keypad Timer up to
0-999h59m Real-Time Clock Programming: 50 Programs with 15 steps
(Temperature, Gradient, Time)
RS 232 Interface 1 shelf

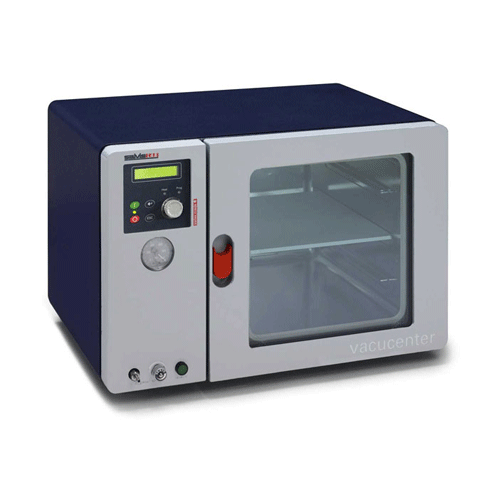

SalvisLab Vacucenter VC 20, VC 50
The SalvisLab Vacucenter represents the optimal solution for
oxidation sensitive substances and thermally instable products. It
provides precise thermal conditions in dust-free vacuum atmosphere.
These characteristics enable highly successful vacuum drying
applications for a wide range of laboratory applications in areas such
as chemical engineering, pharmaceuticals, foodstuffs, cosmetics and
electronics industry. The carefully designed wall heating system can be
controlled within 0.1°C and ensures stable temperature conditions over
the entire shelf area ranging up to + 200°C.
GLP/GMP conformity
SalvisLab Vacucenter meets GLP and GMP standards.
Safety on all levels
The Vacucenter feature an exclusive pressure safety system. The
viewing window consists of double pane safety glass. SalvisLab
Vacucenter is classified in Safety Class 3.1.
High Quality Design
The chamber interior is made of high quality stainless steel. The
insert shelves are manufactured from anodised aluminium, thus enabling
efficient heat transfer and best chemical resistance.
Turbulence-free return to ambient atmosphere
Return to atmospheric pressure is enabled by means of a precision
needle valve for ambient air or inert gas. A cleverly designed input jet
behind a fender plate permits pressurisation of the chamber without
causing turbulence.
All is under control with the SalvisLab EasyMenu
The EasyMenu developed by SalvisLab enables intuitive programming of
the SalvisLab Vacucenter. In just a few easy steps, temperature,
gradient and hold time (optionally set vacuum and hysteresis of vacuum)
can be determined. The PID controller featuring fuzzy logic
characteristics controls temperature, timing and optionally the
evacuation level. 50 programs consisting of 15 program steps each are at
your disposal for program duration of up to 999 hours 59 minutes.
The LCD display keeps you informed with all the desirable data over the entire process cycle.
Options
- Digital vacuum display
The pressure in the interior chamber is measured with an installed pressure sensor and is displayed by a digital display. - Vacuum control through solenoid valve
digital vacuum control through solenoid valve - Vacuum control through vacuum pump
digital vacuum control through solenoid valve and vacuum pump.
Easy cleaning
Inside the chamber, all transitional areas between walls, ceiling and
chamber floor are designed with convenient radii to enable easy and
efficient cleaning.
Temperature and pressure performance
The door seal is made of Silicon, easy to clean and provides absolute
tightness. It prevents heat and pressure loss as it also keeps vapours
and gases from escaping.
